Maakt het mogelijk één electrode aan te sluiten op twee ingangen

Maakt het mogelijk twee electroden op één ingang aan te sluiten

DIN EEG Extender Cables 8in, 21cm - T8740

EEG HEADBAND

EEG-Z™ Sensor - T9305Z

EEG-Z is a pre-amplified electroencephalograph sensor with built in impedance checking. Get the ultimate hook up every time with this sensor as it monitors skin impedance (both the reactive and resistive elements) and sensor connection.

Contains:

• SA9305Z ( Sensor EEG-Z )
• T8750 ( TT-EEG monopolar / bipolar kit )

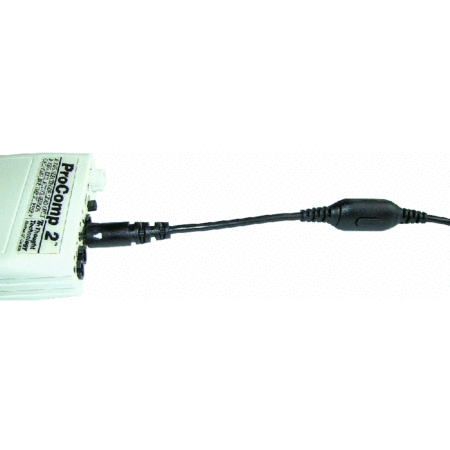

The Switch Sensor cable enables you to trigger an impedance check by the EEG-Z sensor by pressing and releasing the switch button to briefly interrupt the sensor circuit. The EEG-Z sensor enters impedance checking mode, without requiring you to disconnect and reconnect the sensor.

This reduces wear and tear on the cable connection pins.

Connecting the Cable

Align the guiding dot on the top of the cable plug with the notch in the encoder input socket, and gently insert the plug into the socket.

Repeat this to connect the other end of the cable to the bottom of the sensor head.

Using the Switch Cable to Check Impedance

• Use the switch sensor cable to connect the EEG-Z sensor to Input B of the ProComp2 encoder.
• Place the electrodes on the client and connect the EEG extender cable to the EEG-Z sensor.
• Start the software, choose the impedance checking channel set, and start a session.
• Do not start recording. Access the impedance checking function from the Hardware menu.
• Press and release the switch button on the sensor cable.
• If necessary, adjust the electrodes on the client and then repeat the preceding step.
• When you are satisfied with the displayed values, close the impedance check window and end the impedance checking session.
• Connect the EEG extender cable to Input A of the ProComp2 encoder, and disconnect the switch sensor cable and EEG-Z sensor from Input B.
• Choose the appropriate channel set and start the recording session.

The switch sensor cable is a replacement cable designed specifically for use with the ProComp2 encoder and the EEG-Z sensor for impedance testing.

TT-EEG 2 Channels Connectivity Kit (requires two T8750) - T8760

Includes the necessary cables to measure two channels with common reference and ground.

This kit is used in conjunction with two (2) monopolar/bipolar kits (T8750).

It allows users to make two-channel measurements with common ground and reference– required when working with connectivity or other two-channel EEG protocols. It is recommended for all purchases of two EEG sensors or two monopolar/bipolar kits - to include the possibility of using bipolar or monopolar channels, linked ear reference, single ground for both channels, or any combination of these configurations.

This kit contains the following components:

• SA9323 - TT-EEG gold cup cable – black
  SA9315 - 1M2F Y-connector

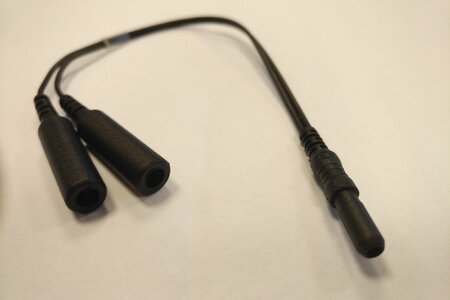

  SA9319 - 2M1F Y-connector

TT-EEG 4 Channel Connectivity Kit 24in, 61cm (requires four T8750) - T8761

TT-EEG Linked Ears Kit (requires one T8750) - T8755

Includes the necessary cables to add a linked ear reference to the monopolar/bipolar kit.

• Used in combination with the TT-EEG Monopolar/Bipolar Electrode Kit.
• Add a linked ear reference to either the monopolar or bipolar configuration and choose between ear clip or cup electrode active ground.

TT-EEG Monopolar Bipolar Kit with DIN Cable - T8750

Includes two gold cup cables and two gold ear clip cables, as well as our DIN extender cable.

• Create a single monopolar channel with one cup and two ear clips, or a single bipolar channel with two cups and one ear clip.
• For use with the EEG Flex/Pro and EEG-Z sensors.

TT-EEG Monopolar Bipolar Kit without DIN Cable - T8751

Same as T8750 with the DIN extender cable excluded.

• For our users who have previously purchased the DIN extender cable.
